Product Description For MWTAL ELASTIC SUPPORT:

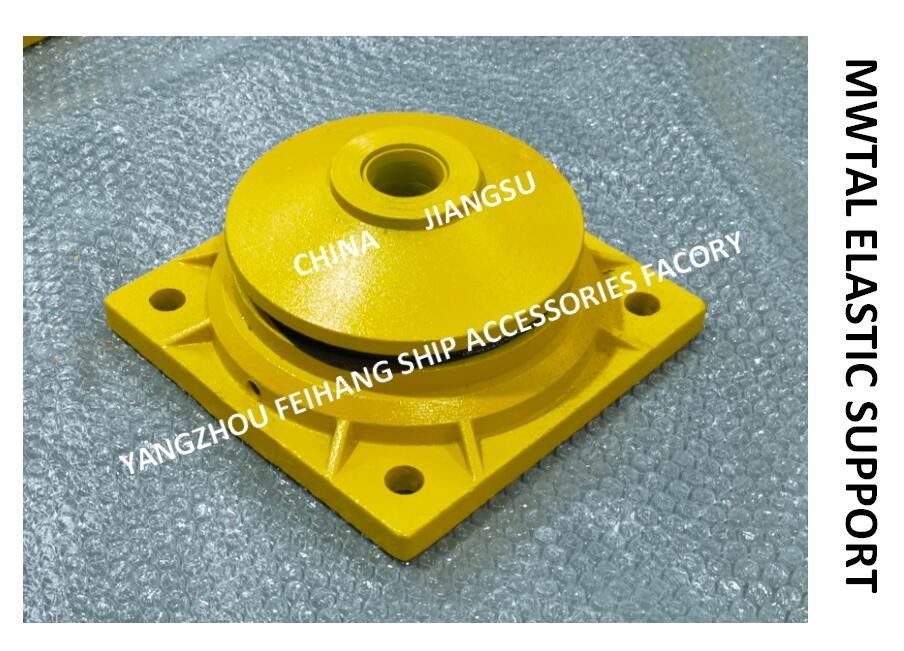

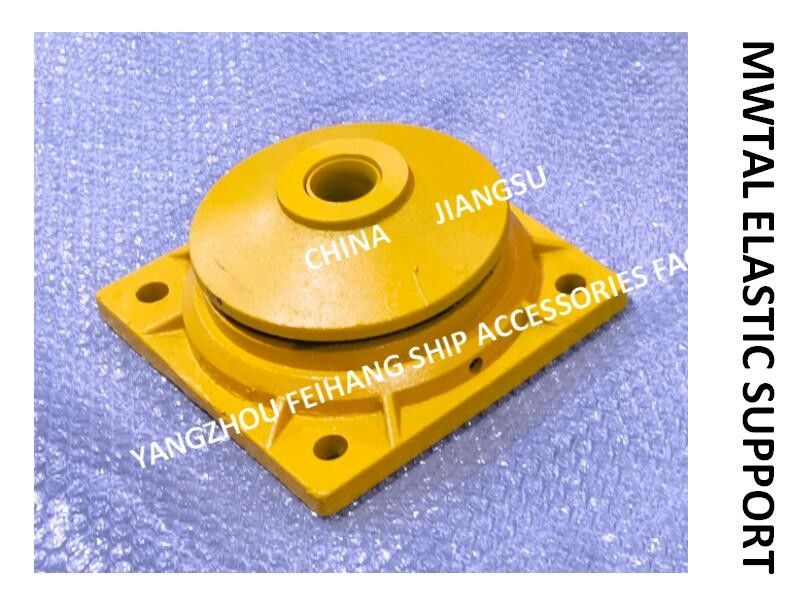

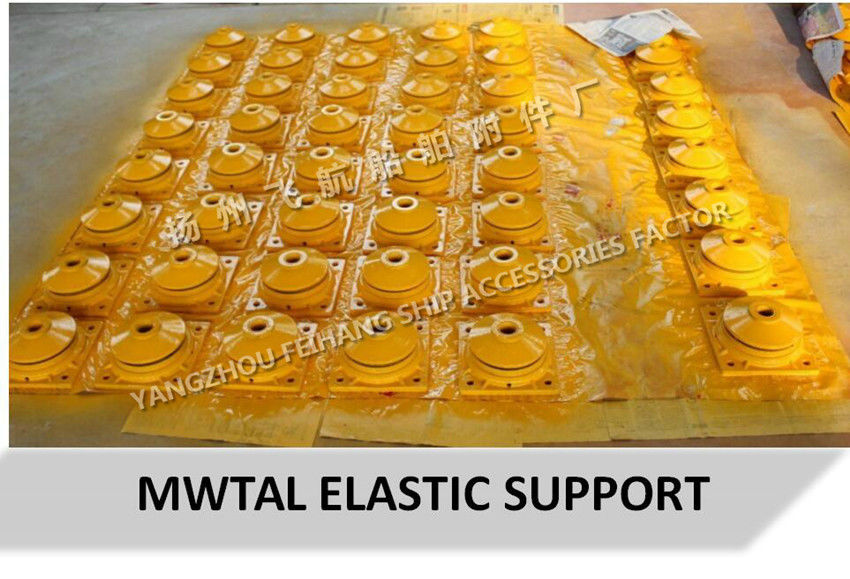

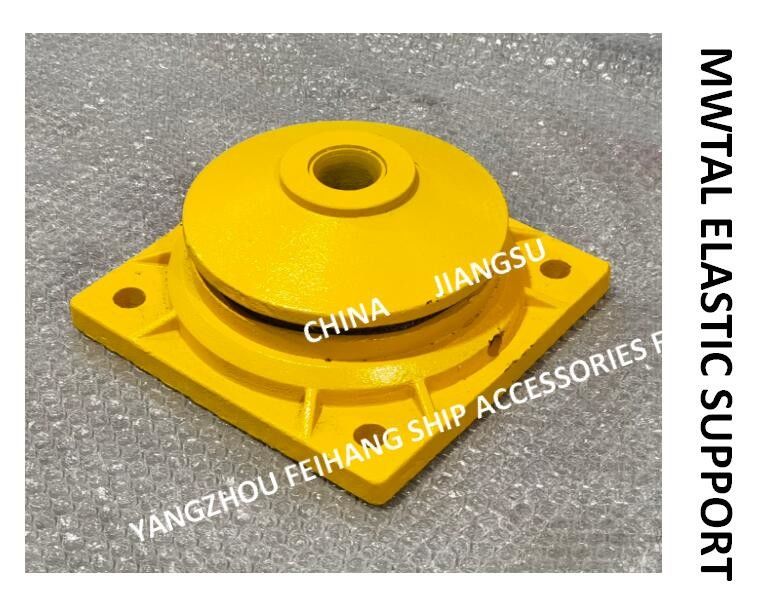

θαλάσσια Metal Elastic Support B14 CB * 3321-88
Product Overview:
CB * 3321-88 θαλάσσια metal elastic support is a new type of vibration isolator series product that utilizes stainless steel wire as the elastic body. This product is mainly suitable for the elastic installation of ship diesel engine pipeline systems and auxiliary engine base deck structures.
In addition, this θαλάσσια metal elastic support can also be widely used for various industrial pipeline installations, vibration isolation and impact prevention of power machinery, on-board equipment, instruments and meters, etc. Notably, it is particularly suitable for accommodating variable load and broadband random vibration isolation.
Often, when metal elastic supports are used in pipeline systems, they are usually used together with elastic hangers.
Features For MWTAL ELASTIC SUPPORT:
θαλάσσια metal elastic support B14 CB * 3321-88 is a strong support solution with many benefits for θαλάσσια vessels. It has high hardness and friction damping, making it ideal for vibration isolation applications. This type of support also has a wide range of bearing capacity and works efficiently under variable load conditions.
This product is made up of all metal materials and a durable construction. It has been specifically designed to be resistant against fatigue, corrosion, radiation and temperature. A great advantage of this type of support is its bidirectional vibration isolation and impact resistance. Negative pressure is also no issue with this product which can work continuously in such condition.
The vibration isolation system composed of metal elastic supports for ships has successfully passed the MIL-STD-167 “Mechanical Vibration of Ship Equipment” assessment without any issue. The vibration isolation system is reliable, showing no abnormalities within two-hour testing period with natural frequency.
Technical Parameters For MWTAL ELASTIC SUPPORT:
| Parameter |
Value |
| Product Name |
MWTAL ELASTIC SUPPORT |
| Working pressure |
1.0-1.5Mpa |
| Rated Vertical Load N(kgf) |
2500-70000 (250-7000) |
| Model |
A10,B12,B14 |
| Material |
Stainless Steel, Cast Steel |
| Application |
θαλάσσια |
| Design standards |
CB*3321-88 |
| Keywords |
θαλάσσια deck drainage hole bolts, GUTTER PLUGS |
Applications For MWTAL ELASTIC SUPPORT:
Installation Instructions for θαλάσσια Metal Elastic Support CB*3321-88
When using the metal elastic support, it is recommended to select the middle rated load for the elastic support based on the weight of the isolated object. This will help to better provide vibration isolation and impact resistance for the tunnel. Additionally, series supports should be used in order to reduce the stiffness and natural frequency of the system.
When installing each support point, it should correspond to the center of gravity of the isolated object, making sure that the force on each elastic support is uniform. The base surface should have a concave surface with two small holes (d3) on the support body. With this setup, a screwdriver can be used to facilitate bolt locking during installation. (As shown in the figure below)
Due to high requirements, the level should be adjusted a few weeks after installation. In addition, for vibration isolation of ship piping systems, please refer to the following schematic diagram - typical installation schematic diagram of elastic supports (various arrangements and sliding installations such as vertical pipelines and equipment elastic supports)
Customization For MWTAL ELASTIC SUPPORT:
We offer customized θαλάσσια Spare Parts for all your needs. Our brand name is FEIHANG and our model number is FH-type. Our products are made in Yangzhou, Jiangsu, China and come with a Factory Certificate, Test Report, and Material Report. Our minimum order quantity is 1pcs and the price is to be discussed personally. We offer export packaging and a delivery time of 1-2 days. We accept 100% prepaid payment and have the ability to supply up to 100pcs/days. Our θαλάσσια Spare Parts are made of Stainless Steel and Cast Steel and have a rated vertical load of 2500-70000(250-7000) N(kgf). The working pressure is 1.0-1.5Mpa. Our products include θαλάσσια deck drainage hole bolts, DECK SCUPPER PLUG, GUTTER PLUG, MWTAL ELASTIC SUPPORT with models A10, B12, and B14.
Support and Services For MWTAL ELASTIC SUPPORT:
We provide technical support and services for θαλάσσια Spare Parts. Our team of experienced professionals can help you with any inquiries or technical issues you may have. We offer phone, email, and live chat support to help you get the answers you need quickly. Our service team is available 24/7 to assist you with any questions or concerns you may have. We also offer a wide range of spare parts and accessories to help you keep your θαλάσσια vessels in top condition. We provide high quality products at competitive prices, so you can be sure that you are getting the best value for your money.
Packing and Shipping For MWTAL ELASTIC SUPPORT:
θαλάσσια spare parts should be packaged in a manner that protects them from moisture, dirt, dust, and other potentially damaging elements. Parts should be wrapped in a water-resistant material, such as plastic wrap or wax paper, before being placed in a box. If the parts are fragile, they should be surrounded with a cushioning material like foam or bubble wrap. The box should be clearly labeled with the part number and the destination address.
Shipping of θαλάσσια spare parts should be done using a reliable and secure shipping service. Air and ground delivery services are available, and the choice of which to use should take into account the size and weight of the parts and the distance of the shipment. The package should be properly labeled and tracked to ensure it reaches its destination safely and on time.
FAQ For MWTAL ELASTIC SUPPORT:
Q1: What is the Brand Name of the θαλάσσια Spare Part?
A1: The Brand Name of the θαλάσσια Spare Part is FEIHANG.
Q2: What is the Model Number of the θαλάσσια Spare Part?
A2: The Model Number of the θαλάσσια Spare Part is FH-type.
Q3: Where is the Place of Origin of the θαλάσσια Spare Part?
A3: The Place of Origin of the θαλάσσια Spare Part is Yangzhou, Jiangsu, China.
Q4: What Certifications are available for the θαλάσσια Spare Part?
A4: The Certifications available for the θαλάσσια Spare Part are Factory certificate, test report, material report.
Q5: What is the Minimum Order Quantity for the θαλάσσια Spare Part?
A5: The Minimum Order Quantity for the θαλάσσια Spare Part is 1pcs.
