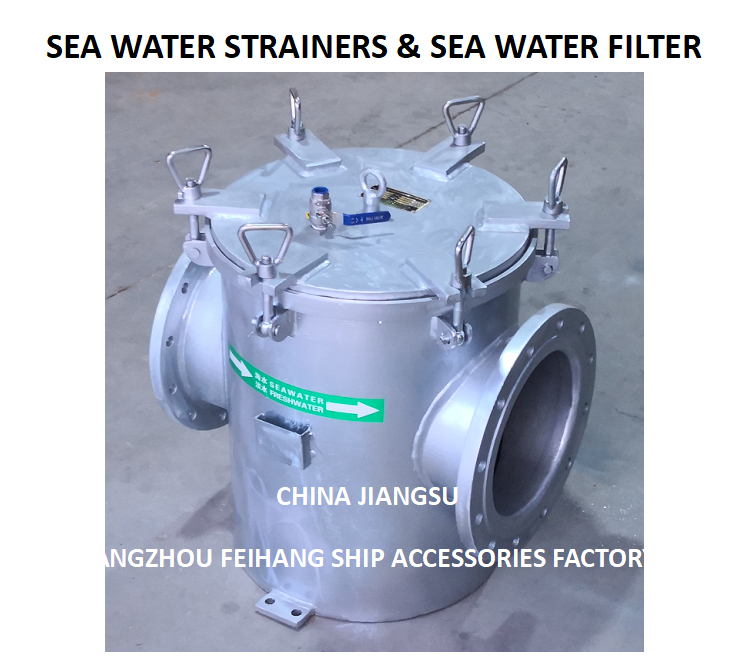

Seawater filter - Coarse water filter for Auxiliary machinery AS300 CB/T497-2012 Body - Hot dip galvanized Filter cartridge - Stainless steel

WATER FILTERS-SEA WATER FILTERS-SEA WATER STRAINERS
Implement standard CB/T497-2012

This standard is applicable to the design, manufacturing, and acceptance of filters for marine seawater and freshwater pipeline systems.

This standard (CB/T497-2012) specifies the classification, requirements, test methods, inspection rules, labeling, and packaging of suction coarse water filters (hereinafter referred to as seawater filters) with flange connection dimensions and sealing surfaces in accordance with GB/T569 and GB/T 2501 or other.

SEA WATER FILTER - SEA WATER STRAINERS
Marine Coarse Water Filter - Simplex Strainers - Steel Plate Water Filter

Marine Seawater Filter: Marine steel plate seawater filter can be equipped with either bolt or quick release hinge bolt cover unit, making it highly adaptable for various applications. The marine seawater filter manufactured by Yangzhou Aviation Ship Accessories Factory is designed for easy maintenance - simply open the cover plate and remove the filter element for cleaning.

• Type A - Flange connection size and sealing surface according to GB/T569 straight through suction coarse water filter seawater filter
• AS type - flange connection size and sealing surface according to GB/T2501 straight through suction coarse water filter - seawater filter
• BR type - flange connection size and sealing surface according to GB/T569 right angle suction coarse water filter seawater filter
• BRS type - flange connection size and sealing surface according to GB/T 2501 right angle suction coarse water filter - seawater filter
• BL type - flange connection size and sealing surface according to GB/T569 left angle suction coarse water filter - seawater filter
• BLS type - flange connection size and sealing surface according to GB/T2501 left angle suction coarse water filter - seawater filter

• Product Name: Marine Sea Water Strainer
• Fillers: Nitrile Rubber, EPDM Rubber, PTFE, Fluororubber, Etc.
• Design Standards: CB/T497-2012
• Set up at the cover plate: Exhaust Valve
• Set up at the bottom: Discharge Port
• Filter Mesh: 1-10mm

The marine seawater filters produced by Yangzhou Aviation Ship Accessories Factory strictly follow each production process, which includes carefully selecting raw materials, then rolling them through a plate rolling machine to form the seawater filter body, followed by welding connections, flanges, and welding connections between the filter body, connections, and flanges to form a preliminary shape. The filter cartridge is then customized according to customer requirements and finally assembled.

Each marine seawater filter produced by Yangzhou Aviation Ship Accessories Factory has undergone strict inspection and testing, and a test certificate is provided upon delivery. After the assembly of the seawater filter is completed, a hydrostatic test shall be conducted with a test pressure of 1.5 times the working pressure for 5 minutes without leakage.

According to different customer requirements, the interior of this marine coarse water filter - marine seawater filter can be selected from: epoxy paint coating, hot-dip galvanizing treatment, spray coating treatment, rubber lining treatment.

According to different customer requirements, this marine coarse water filter - marine seawater filter surface can choose from: epoxy paint coating, hot-dip galvanizing treatment.

The SEA WATER FILTER & SEA WATER STRAINERS is safely packaged in an export wooden box, designed to protect it during transportation. The box is clearly labeled with the product name and any relevant handling instructions. Then use a reliable transportation company to deliver it to the customer.

We are a qualified manufacturer (SEA WATER FILTER & SEA WATER STRAINERS) in China, and our products have been exported to customers around the world, such as Singapore, Dubai, Hamburg, United Arab Emirates, Netherlands, South Korea, Mexico, Thailand, Indonesia, Vietnam, Philippines, United Kingdom, etc.
